Oil Coolers Exclusive Feature of Falls Oil Coolers - External Floating Head with Removable Tube Bundle



Every Engineering Industry has one or more Industrial Machines as listed above. For their continous and smooth operations it is essential to maintain the temperature of oil in the machine within safe limits of its working temperature level, thereby retaining its properties. This is made possible by installing Water Cooled Oil Coolers wherein the oil dissipates its heat to cooling water.

We, at Falls Industries In-Corporation Design & Manufacture Oil Coolers with special emphasis on Standard Models.


Their construction is of External Floating Head type in which the tube bundle is removable for cleaning etc. At the same time there is no possibility of intermixing of two fluids at any time due to possible failure of packing ring. This is the most important and unique feature of Falls Oil Coolers not seen in Packed Floating Head type or Fixed tube sheet type construction offered by others. The tubes are expanded into tubeplates at both the ends. Selection of a Falls Model is done by evaluating heat load, LMTD, heat transfer coefficient etc. depending on type of oil & is backed by our experience of more than 40 years.

APPLICATIONS OF OIL COOLERS: Hydraulic Power Packs/Presses, Plastic Injection Moulding Machines, Plastic Blow Moulding Machines, Lub Oil Systems, Gear Boxes, Machine Tools, Transformers, Quench Oil Systems, Coolant Cutting Oil, Diesel Engines & Compressors, & Turbines, Rolling Mills.

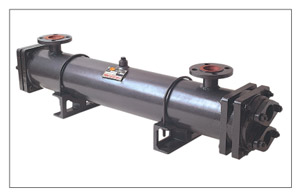

Typical small Models are illustrated below:
Our Manufacturing Range is -

Code : TEMA, ASME, IS
Oil Flow rate : 3 lpm to 2000 lpm
Shell diameter : 80 NB to 600 NB
Tube length : 0.3 to 6 m
Tube Material : Copper, Admiralty Brass, Cu-Ni, SS
Design Pressure : upto 20 Kg/cm2
Design Temp. : upto 250 oC




Salient Features -

More than 100 Standard Models
Copper tubes of DHP grade having 99.9% purity
Minimum 3/8” dia tubes are used to avoid frequent choking
External Floating Head Construction with Removable Tube Bundle
Expanded Tubes in tubeplates for cent percent leak proofness
   by automatic electronic Tube Expander
Super Workmanship
Stringent Quality Control by personnel having experience in
   Falls over 3 decades
High Thermal Efficiency
Wide Margin of Safety
Guaranteed Performance
Hydraulically tested at 1.5 times Design Pressure
Simple Installation due to loose bracket supports
Easy for Maintenance
Compact Outlook
Light in Weight
Competitive Prices
Fast Delivery due to Mass Production

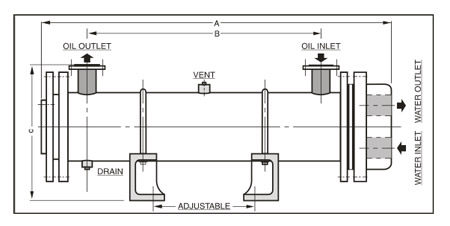

Falls Model*
Oil / Water C
A
B
C
30FC06
1/2" BSPT
374
185
160
30FC09
1/2" BSPT
524
334
160
30FC13
1/2" BSPT
734
544
160
31EC16
3/4" BSPT
935
615
192
31EC20
3/4" BSPT
1110
790
192
32EC13
1" BSPT
770
430
215
32EC16
1" BSPT
935
595
215
32EC20
1" BSPT
1110
770
215
33EC16
1 1/2"NB
935
565
286
33EC24
1 1/2"NB
1310
940
286
34EC20
2" NB
1120
720
340
34EC30
2" NB
1620
1220
340

* In-between & Larger size Models could be furnished against specific inquiry.

Along with your inquiry please specify -

Oil flow rate in lpm.
Oil inlet temperature & desired outlet temperature.
Heat to be dissipated in Kcal/hr.
Motor HP in case of Hydraulic Power Packs.
KW losses in case of Transformers.
Charge in Kg/hr for Quenching Furnaces.
Rating in KW in case of Gear Box / Rolling Mill / Turbine.
Cfm in case of Compressors.
Gms. capacity incase of Plastic Injection / Blow Moulding Machines.
The size of existing Oil Cooler in case of a replacement
