We at falls industries in corpn., design and manufacture Shell and Tube type Heat Exchangers.

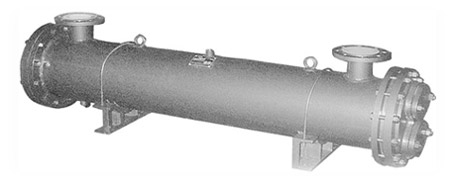

Water to Water Heat Exchangers are of specialized construction for cooling fresh � treated�soft water in DG sets, Induction Furnaces, Welder Generators by means of ordinary water.
|
 |
|

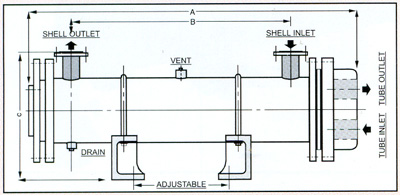

Falls Model*
|
Cannections
|
A
|
B
|
C
|
|
31EC16
|
3/4" BSPT
|
935
|
615
|
192
|
|
33EC16
|
1 1/2" NB
|
937
|
565
|
286
|
|
33EC24
|
1 1/2" NB
|
1312
|
940
|
286
|
|
34EC24
|
2" NB
|
1321
|
920
|
940
|
|
34EC36
|
2 1/2" NB
|
1921
|
1520
|
340
|
|
35EC30
|
2 1/2" NB
|
1624
|
1200
|
454
|
|
35EC48
|
3" NB
|
2524
|
2100
|
454
|
|
36EC60
|
3"NB
|
3130
|
2680
|
504
|
|
|
| *Many more Models are available Our manufacturing rang is - |
| Type |
: |
Fixed Tubesheet,External Floating Head Packed Floating Head, U tube Floating Head |
| Position |
: |
Horizontal, Vertical-Base Mounted/Suspended |
| Code |
: |
TEMA, ASME, IS |
| Heat Transfer Area |
: |
0.2 m2 to 100 m2 |
| Design Pressures |
: |
upto 30 Kg/cm2 |
| Design Temperatures |
: |
upto 250 0c |
| Shell |
: |
80 NB to 600 NB ERW or Seamless |
| Tubes |
: |
0.3 to 6 m Seamless, semi-welded, Welded |
| Materials |
: |
CS, Copper, Brass, Adm.Brass, SS, Cu-Ni |
| |
| Along with your inquiry please specify - |
- Name of the fluid to be heated or cooled
- Flow rate per hour and working pressure of the process fluid
- Intel & desired outlet temperature of the process fluid
- Temperature of cooling water available for cooling or pressure of steam available for heating, whichever applicable.
- Heat to be dissipated in kcal/hr
- Capacity in cfm of air incase of Compressor
- HP/KW rating incase of Hydraulic Power Pake/D.G. Set/Furnace
- Change Quenched in kg/hr incase of heat treatment process
- The size of the existing Heat Exchanger incase of a replacement giving no. of tubes, OD & length of tubes,body diameter, passes etc.
|
